Pedestrian Tow Tractor Tug Electric 1000kg 600N Pulling Power

Product Categories
Zhejiang Jialift Warehouse Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

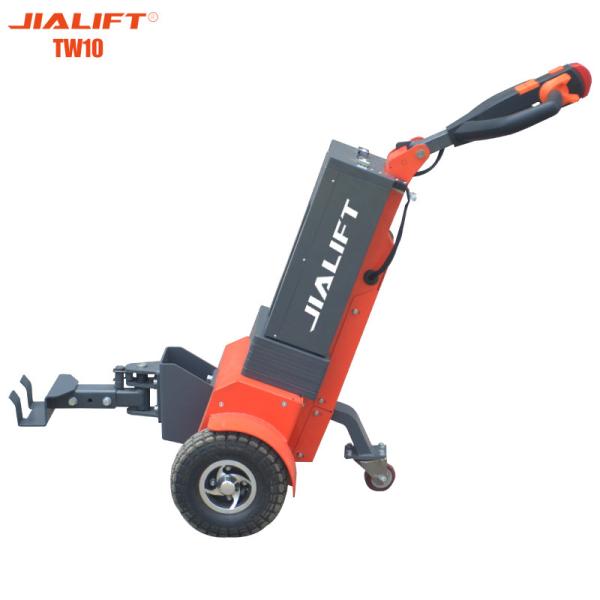

Pedestrian Tow Tractor Tug Electric 1000kg 600N Pulling Power

Brand Name : JIALIFT

Model Number : TW10

MOQ : 1

Price : Negotiation

Supply Ability : 200 units per day

Delivery Time : 3 days

Packaging Details : Tray or container

Certification : CE，UL

Place of Origin : CHINA

Load Capacity : 1000kg

Battery : Lead acid/Li-lon

Dye motor : 0.4kw

Battery voltage/Battery capacity : 24/32V/Ah

Battery weight (±5%) : 19.6kg

Noiselevel at operator 's ear : ≤70dB(A)

Type of drive control : AC

Contact Now

Tow tractor(Pedestrian) TW10 Electric Rated traction weight 1000kg Max.pulling power 600N Electric Tow Tractor

Electric Tow Tractor TW10.pdf

Tow tractor(Pedestrian) Electric Rated traction weight 1000kg Max.pulling power 600N Electric Tow Tractor

Product Features
1.The whole vehicle design is compact,thetransmission is stable,the shape is small,and theturn radius is small;
2.The electric switch on the left side of the vehiclebody has a dot dynamic function,and theoperating efficiency is high;
3.The back cover is convenient to disassemble,andthe components are convenient to repair andreplacement of components;
4.The new communication power system providespowerful power,more accurate speed controlperformance and various regenerative functions,more operation Safe and reliable;
5.Side pull battery box design,easy to replace thebattery,convenient for continuous operation.

Characteristics
Model TW10
Power unit Electric
Operation Pedestrian
Hated traction weight Q(kg) 1000
Rated pulling power F(N) 200
Wheel base y(mm) 321
Service weight with battery kg 116
Wheels/Tyres
Wheels type Rubber wheel
Driving wheel size Φ×w(mm) Φ254×85
Bearing wheel size Φ×w(mm) Φ75x32
Before the wheel track b10(mm) 441
Dimensions
Overall height(With handle) h14(mm) 912/1155
Coupler height h10(mm 275/310/340
Overall length l1(mm) 1184
Overall width b1/b2(mm) 526
Min.Ground clearance m2(mm) 67
Min.Turning radius Wa(mm) 850/902/916
Performance
Travel speed,laden/unladen km/h 3.8/4.2
Max.pulling power N 600
Gradeability.laden/unladen % 3/10
Brake Electromagnetic
Drive
Dye motor kW 0.4
Battery voltage/Battery capacity V/Ah 24/32
Battery weight (±5%) kg 19.6
Other
Type of drive control AC
Noiselevel at operator 's ear dB(A) ≤70

Pedestrian Tow Tractor Tug Electric 1000kg 600N Pulling Power

Pedestrian Tow Tractor Tug Electric 1000kg 600N Pulling Power
